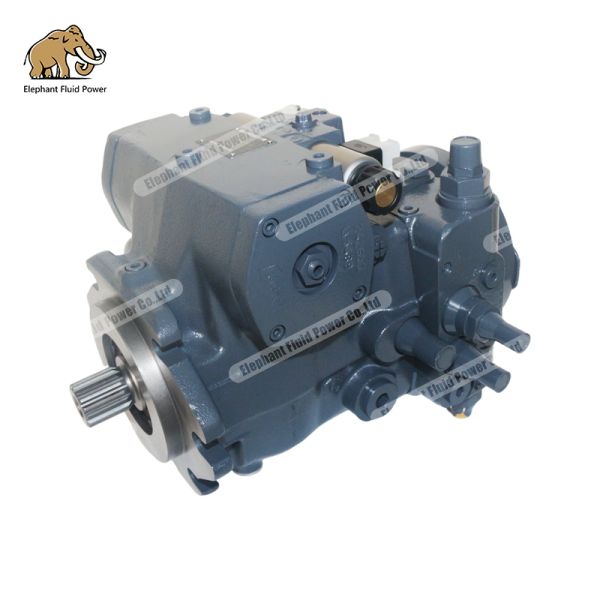

Hydraulic Pump Bosch Rexroth A4VG71 Available In Stock With Warranty
Elephant Fluid Power Co.,Ltd makes Hydraulic Pump Bosch Rexroth A4VG71 Available In Stock With Warranty,good quality,best price,fast lead time,good after-sales services.one year warranty .
Technical data:
- High pressure pump for applications in closed circuits
- Size 28 ' 125
- Nominal pressure 400 bar
- Maximum pressure 450 bar
- Closed circuit
- Metric version
.
| Size | 28 | 40 | 56 | 71 | 90 | 125 | 180 | 250 |
| Displacement | variable pump | Vgmax | cm3 | 28 | 40 | 56 | 71 | 90 | 125 | 180 | 250 |
| boost pump (at p = 20 bar) | VgSp | cm3 | 6.1 | 8.6 | 11.6 | 19.6 | 19.6 | 28.3 | 39.8 | 52.5 |
| Speed | maximum at Vgmax | nmaxcontinuous | rpm | 4250 | 4000 | 3600 | 3300 | 3050 | 2850 | 2500 | 2400 |
| limited maximum | nmax limited | rpm | 4500 | 4200 | 3900 | 3600 | 3300 | 3250 | 2900 | 2600 |
| intermittent maximum | nmax interm. | rpm | 5000 | 5000 | 4500 | 4100 | 3800 | 3450 | 3000 | 2700 |
| minimum | nmin | rpm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Flow | at nmax continuous and Vg max | qv max | l/min | 119 | 160 | 202 | 234 | 275 | 356 | 450 | 600 |
| Power | at nmax continuous and Vg max p = 400 bar | Pmax | kW | 79 | 107 | 134 | 156 | 183 | 237 | 300 | 400 |
| Torque | p = 400 bar | Tmax | Nm | 178 | 255 | 356 | 451 | 572 | 795 | 1144 | 1590 |
| at Vg max | p = 100 bar | T | Nm | 44.5 | 63.5 | 89 | 112.8 | 143 | 198.8 | 286 | 398 |
| Moment of inertia (of the turning parts) | J | kgm2 | 0.0022 | 0.0038 | 0.0066 | 0.0097 | 0.0149 | 0.0232 | 0.0444 | 0.0983 |
| Angular acceleration, max. | rad/s2 | 38000 | 30000 | 24000 | 21000 | 18000 | 14000 | 11000 | 6700 |
| Speed variation, max. | rpm | 103 | 81 | 72 | 69 | 64 | 55 | 50 | 34 |
| Rotary stiffness | shaft end S | Nm/rad | 31400 | 69000 | 80800 | 98800 | 158100 | 218300 | 244500 | 354500 |
| shaft end T | Nm/rad | - | - | 95000 | 120900 | - | 252100 | 318400 | 534300 |
| shaft end A | Nm/rad | - | 79600 | 95800 | 142400 | 176800 | 256500 | - | - |
| shaft end Z | Nm/rad | 32800 | 67500 | 78800 | 122800 | 137000 | 223700 | 319600 | 624200 |
| shaft end U | Nm/rad | 50800 | - | - | 107600 | - | - | - | - |
About us
Elephant fluid power supply hydraulic pumps,hydraulic motors and pump parts,our quality is equivalent as original,good price,fast lead time,
good after-sales services,is your first choice for hydraulic replacement.
Our main products models are as followings:
| Rexroth | A2F12/23/28/55/80/107/160/200/225/250/335/500 |
| | A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500 |
| | A7V28/55/80/107/160/225/250/355/500/1000 |
| | A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500 |
| | A4VSO45/71/125/180/250/500/1000 |
| | A4V40/56/71 |
| | A4VG28/40/45/50/56/71/90/125/140/180/250 |
| | A4VTG71/90 |
| | A10VSO10/16/18/28/45/63/71/85/100/140 |
| | A10VG18/28/45/63 |
| | A11VO60/75/95/130/145/160/190/250/260 |
| | |
| Kawasaki | K3SP36C |
| | K3V63DT/112DT/140DT/180DT/280DT |
| | K3VL28/45/60/80/112/140/200 |
| | K3VG63/112/180/280 |
| | K7V63/100 |
| | K7VG180/265 |
| | K5V80/140/160/200 |
| | NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270 |
| | NX15 |
| | NVK45 |
| | KVC925/930/932 |
| | M2X55/63/96/120/128/146/150/170/210 |
| | M5X130/150/173/180/500 |
| | MX50/80/150/173/200/250/450/500/530/750 |
| | |
| KAYABA | MAG150/170 |
| | KYB87 |
| | MSG18P/27P/44P/50P |
| | MSF series |
| | |
| Komatsuu | HPV 35/55/90/160(PC60/120/200/220/300-3/5)PC400/PC650 |
| | |
| Libherr | LPVD 35/45/64/75/90/100/125/140/165/225/250 |
| | FMV075/100 |
| | LMF(V)45/64/75/90/100/125/140 |
| | |
| Toshiba | PVB80/92 |
| | PVC80/90 |
| | SG 015/02/025/04/08/12/15/17/20/25 |
| | |
| Linder | HPV55/75/105/135/165/210/280 |
| | HPR75/90/100/130/160 |
| | MPR28/45/63/71 |
| | HMR75/105/135/165 |
| | HMF28/35/50/ |
| | BPV35/50/70/100/200 |
| | B2PV35/50/75/105/140/186 |
| | BMF35/55/75/105/140/186/260 |
| | BMV35/55/75/105/135 |
| | BPR55/75/105/140/186/260 |
| Sauer | PV90R(L)(M)030/42/55/75/100/130/180/250 |
| | PV42-28/41/51 |
| | SPV15/18 |
| | KRR(LRR)025C/030D/038C/045D |
| | MR(MS)070/089/227/334 |
| | |
| Eaton | 3321/3331 |
| | 4621/4631 |
| | 5421/5431 |
| | 78461/78462 |
| | |
| Vicker | PVE12/21/45 |
| | TA19/MFE19 |
| | PVM 018/020/045/050/057/063/074/081/098/106/131/141 |
| | PVH 57/74/98/131/141 |
| | PVB 5/6/10/15/20/29/45/90 |
| | |
| Yuken | A10/16/22/37/40/45/56/70/90/100/125/145/220 |
| | A3H16/37/56/71/100/145/180 |
| | |
| Parker | PVP16/23/33/41/48/60/76/100/140 |
| | PV 016/020/023/028/032/040/046/063/080/092/140/180/270 |
| | P2/3-060/075/105/145 |
| | PAVC 33/38/65/100 |
| | |
| Hitachi | HPV050/102/105/118/135 |
| | HMGC16/32/48 |
| | HMGF35/36/38/57 |
| | |
| Tokiwa | MKV23/33 |
| | |
| Uchida | A10VD17/23/28/40/43/71 |
| | AP2D12/14/18/21/25/28/36/38/42 |
| | A8VO55/59/80/86/107/115/172 |
| | |
| Nachi | YC35-6 |
| | PVD-2B-32/34/36/38/40/42/45/50 |
| | PVD-3B-54/56/60/66 |
| | PZ-6B-180/220 |
| | PVK-2B-50/505 |
| | PZ-4B-100 |
| | PVD-00B-14/16P |
| | PVD-1B-23/28/32/34 |
With 20 years of experience in the hydraulic industry, our products have been exported to more than 80 countries. We have built a strong reputation based on quality products and excellent service, becoming a world-renowned hydraulic company.
We welcome partnerships and friendships from around the world.
Product Tags:
|
|
Bosch Rexroth A4VG71 Hydraulic Pump with 400 Bar Nominal Pressure 450 Bar Maximum Pressure and 100% Interchange Images
|
